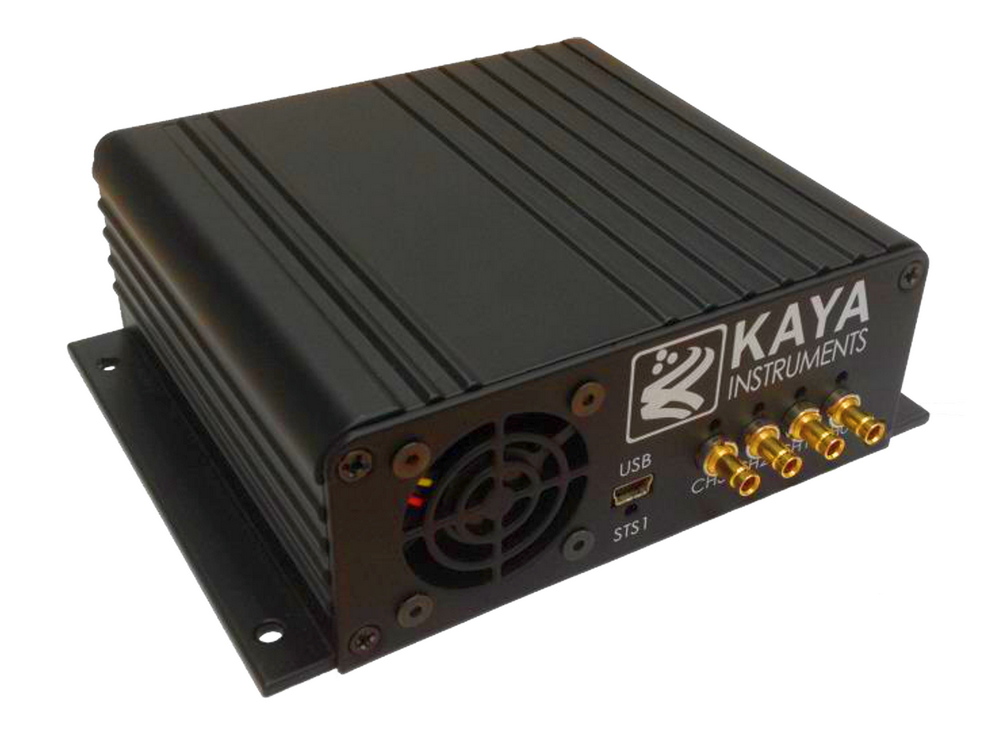

CoaXPress Range Extender over Fiber (SFP+)

Camera Link Range Extender over Fiber

CoaXPress Range Extender over Fiber (SFP+)

Key Features:

  • Up to 4 CoaXPress 6.25Gbps channels
  • Up to 80km maximum distance
  • Full PoCXP support
  • Plug and Play
  • Extended temperature range
  • JIIA certified product

Ordering Codes:

KY-FEXT

Not recommended for new designs. We recommend using CoaXPress 2.1 Range Extender over Fiber (SFP+)

Camera Link Range Extender over Fiber

CoaXPress Range Extender over Fiber (SFP+)

$2,800.00

Product price
Additional options total:
Order total:
Category: Uncategorized
  • Features
  • Specifications
  • Deliverables
  • Block diagram
  • Accessories
  • Contact Us

Features

KAYA Instruments’ CoaXPress Range Extender over Fiber is industry’s first CoaXPress range extender which provides a high resolution stream interface for distances up to 80km in single-mode and up to 300m in multi-mode. Optic fiber is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic interference, also eliminates the problems associated with grounding. The fiber cable is not easily tapped, providing more secure communication. The system is constructed of two convertors, one on the camera side and one on the host side. The converter on the camera side can provide power to the camera over CoaXPress link, while the converter on the host side can sink power from the frame grabber. The converters use flexible SFP+ modules for optical connection that can be easily changed. The range extender is able to provide an uplink of up to 6.25Gbps and downlink at 20.83Mbps.

Specifications

  • Coaxpress V1.1 compatible
  • Solves distance limitation of CoaXPress
  • Downlink/Uplink of 6.25 Gbps and 20.83 Mbps respectively
  • Extension for distances up to 80km in single-mode and up to 300m in multi-mode
  • Bidirectional CoaXPress communication
  • Flexible SFP+ module for Fiber connection
  • DIN rail mounting (optional)
  • DIN 1.0/2.3 connectors for CoaXPress link
  • Plug and Play, no need to configure
  • Power over CoaXPress (PoCXP) support
  • 0°C to 50°C operating environment temperature
  • Available in Board level for OEM use (optional)

Deliverables

  • Host and Device converters
  • SFP+ (optional)
  • Power supply (optional)
  • Hardware user manual
  • Coax cables (optional)
  • Fiber cables (optional)

Block diagram

Example System Block Diagram

The CoaXPress Range Extender over Fiber supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.

Single Camera Topology:

Single, Dual or Quad CoaXPress links with up to 6.25 Gbps per link topology.

Single, Dual or Quad CoaXPress links with up to 6.25 Gbps per link topology.
Quad Camera Topology:

Single CoaXPress link per camera with up to 6.25 Gbps per link topology.

Single CoaXPress link per camera with up to 6.25 Gbps per link topology.

Accessories

null

CoaXPress Frame Grabber

At KAYA Instruments, we offer best in class CoaXPress Frame Grabbers for most demanding applications.
Read More
null

CoaXPress Cables assembly

At KAYA Instruments, we offer a full CoaXPress Cables assembly service to complement our extensive range of CoaXPress products.
Using only quality cables and connectors from reliable sources, KAYA Instruments can support low volume for your prototypes or full production quantities.
Read More
