Komodo FXCL II CameraLink over Fiber acquisition system
Key Features:
- 4 x SFP+ channels 10 Gbps each
- Camera Link Full/80 bit (Deca) support
- Up to 80km maximum distance
- PCIe Gen3 x8 Half-length card
- 4GB DDR4 SODIMM
- PoCL support
- On board image processing (DeBayer, Color correction and many more)
- Flexible GPIO interface
- Sophisticated GUI and SDK support
- Plug and Play
- Extended temperature range (optional)
Ordering Codes:
KY-FXCL
Komodo FXCL CameraLink over Fiber acquisition system
$2,950.00
Komodo FXCL II system is the industry most advanced Camera Link image acquisition system without range limitations. The system uses fiber optic cables to provide high resolution image acquisition interface for distances up to 80km in single-mode and up to 300m in multi-mode, while each Camera Link Full interface translated to single fiber cable. The Komodo FXCL II system is capable of receiving video streams from Camera Link Full camera while such interface supports standard Camera Link bitrates up to 100MHz. This system is ideally suited for industrial, defense and aerospace Machine Vision Systems and applications. The system consists of Komodo II Fiber frame grabber and CameraLink to Fiber device. The remote unit converts CameraLink interface to fiber optic interface. The system uses a high performance flow through DMA to transmit video streams to computer memory through PCIe interface with minimal latency. This product also provides GPIO for machine control signals, such as triggers, shaft encoders, exposure control and general I/O, which can be control aside video stream acquisition.
The Frame Grabber utilizes PCIe Gen3 x8 links for communication with Host PC for video uploading and configuration.
- Solves distance limitation of Camera Link
- Extention for distances up to 80km in single-mode and up to 300m in multi-mode
- Plug and Play, no need to configure
- Camera Link Full (Decca) support
- Camera Link Full over single fiber cable
- Link redundancy feature over separate fiber cable
- Up to 8 CL Full cameras with single Komodo Fiber Frame Grabber
- PCIe Gen3 x8 Half-length card
- Up to 144 Gb image buffer
- Camera controls and triggers
- Per-link LED indication on card bracket
- Flexible machine I/O:
- 4 TTL configurable I/Os
- 4 LVCMOS configurable I/Os
- 2 LVDS inputs
- 2 LVDS outputs
- 4 opto-isolated outputs
- 4 opto-isolated inputs
- 8 quadrature rotary encoders
- Integrated strobe controller
- Camera Link 2.0 compliant
- Power over Camera Link support
- Multiple Camera synchronization
- Multiple Frame Grabbers synchronization
- MDR connectors for camera interface
- GUI interface
- Supporting Windows and Linux OS
- API for developing custom applications
- Plug-ins modules for Matlab, HALCON and Labview
- GenTL support
- Data rates up to 10 Gbps per link
- Transfer Rate of up to 5 Gbps
- 0°C to 50°C operating environment temperature for Komodo Fiber II
- 0°C to 70°C operating environment temperature for CL adapter
On board processing
-
- LUT operators with selectable bit depth
- RGB and Bayer with selectable bit depth
- Tap re-ordering
- H/V flipping
- Custom processing engines
-
-
- Komodo Fiber Frame Grabber II
- CameraLink to Fiber Adapter
- SFP+ modules (optional)
- Power supply (optional)
- Hardware user manual
- Software installation and documentation (Disk-on-Key)
- CL cables (optional)
- Fiber Cables (optional)
- GPIO Extension Panel (optional)
-
Example System Block Diagram
The Komodo FXCL II acquisition system supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.
| Single Camera Topology:
Single or Dual Camera Link interface links. Supports standard Camera Link bitrates with up to 100MHz. |
 |
| Quad Camera Topology:
4 Single or Dual Camera Link interface links. Supports standard Camera Link bitrates with up to 100MHz. |
 |

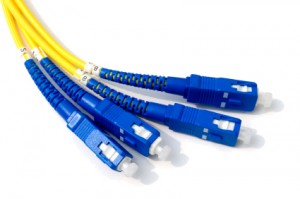

Fiber Cables assembly
Using only quality cables and connectors from reliable sources, KAYA Instruments can support low volume for your prototypes or full production quantities.
