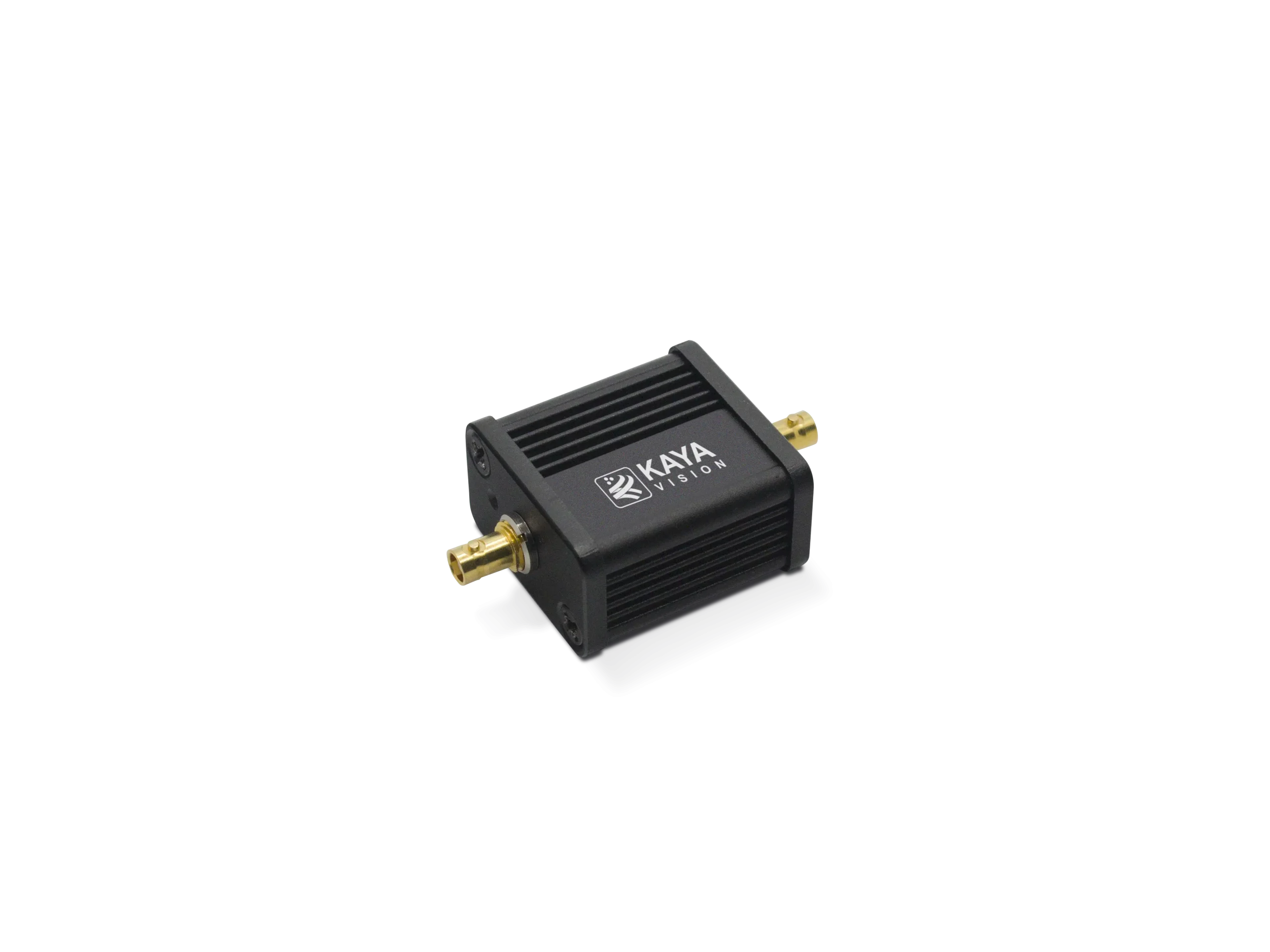

CoaXPress II Range Extender

Features

Key Features:

  • CoaXPress v2.1 compatible
  • Downlink/Uplink of 12.5 Gbps and 40.83 Mbps respectively
  • Full PoCXP support
  • Plug and Play, no need to configure
  • Extended temperature range

Ordering Codes:

KY-EXT-II

KAYA Instruments’ CoaXPress over Coax Range Extender is the industry’s first CoaXPress range extender. The extender increases standard CoaXPress v2.1 transmission distance while maintaining a low jitter, high resolution, and quality stream. The extender enables video, control signals, and power over CoaXPress (PoCXP) transmission for full control of the data stream and camera handle. The Range Extender is able to provide a downlink of up to 12.5 Gbps and uplink at 40.8 Mbps.

Specifications

  • CoaXPress v2.1 compatible
  • Increase transmission distance of CoaXPress
  • Downlink/Uplink of 12.5 Gbps and 40.83 Mbps respectively
  • Bidirectional CoaXPress communication
  • Micro-BNC connector for CoaXPress link
  • Plug and Play, no need to configure
  • Power over CoaXPress (PoCXP) support
  • 0°C to 50°C operating environment temperature
  • -40°C to 70°C operating environment temperature (industrial grade, optional)
  • IP66 rated enclosure (optional)

Block diagram

Example System Block Diagram

CoaXPress range extender II block diagram

CoaXPress II Range Extender

Contact us

    CoaXPress Range Extender Downloads

    Documentation Warranty
