CoaXPress v2.1 Range Extender over Fiber (SFP+)
$ 2750
Features
▪ CoaXPress v2.1 support
▪ CoaXPress over fiber (CXPoF) support
▪ Support up to 12G of operation
▪ Power over CoaXPress with 13W per link
▪ Fanless design
▪ Solves distance limitation of CoaXPress
▪ Downlink/Uplink of 12.5 Gbps and 41.6Mbps
respectively
▪ Support all the standard high-speed link rates: 1.25G,
2.5G, 3.125G, 5G, 6.25G, 10G and 12.5G
▪ Extension for distances up to 80km with single-mode
optic fiber and up to 300m with multi-mode optic fiber
▪ CWDM support
▪ Small mechanical footprint
▪ Improved power connector
▪ Rugged design
▪ Link LED indication on card bracket
▪ LED indicator for system status
▪ Bidirectional CoaXPress communication
▪ Flexible SFP+ module for optic fiber connection
▪ Standard LC fiber interface connectors
▪ Micro-BNC connector for CoaXPress links
▪ Plug and Play, no configuration required
▪ Industrial -40°C to 80°C operation temperature
Ordering Codes:
KY-FEXT-II
KAYA Instruments’ CoaXPress v2.1 Range Extender over Fiber is the industry’s first CoaXPress v2.1 range extender which provides a high-resolution stream interface for distances up to 80km in single-mode and up to 300m in multi-mode. Optic fiber is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic interference, also eliminates the problems associated with grounding. The CoaXPress repeater fiber cable is not easily tapped, providing more secure communication. The system is constructed of two converters, one on the camera side and one on the host side. The converter on the camera side can provide power to the camera over the CoaXPress link, while the converter on the host side can sink power from the frame grabber. The converters use flexible SFP+ modules for optical connection that can be easily changed. The CoaXPress repeater can provide an uplink of up to 12Gbps and a downlink of 41.6Mbps.
Specifications
- Coaxpress v2.1 compatible
- Solves distance limitation of CoaXPress v2.1
- Downlink/Uplink of 41.6 Mbps and 12 Gbps respectively
- Extension for distances up to 80km in single-mode and up to 300m in multi-mode
- Bidirectional CoaXPress communication
- Flexible SFP+ module for Fiber connection
- Micro-BNC connector for CoaXPress links
- Plug and Play, no need to configure
- Power over CoaXPress (PoCXP) support
- Industrial temperature range (-30 to 80C)
- Available at Board level for OEM use (optional)
Deliverables
- Host and Device converters
- SFP+ (optional)
- Power supply (optional)
- Hardware user manual
- Coax cables (optional)
- Fiber cables (optional)
Block diagram
Example System Block Diagram

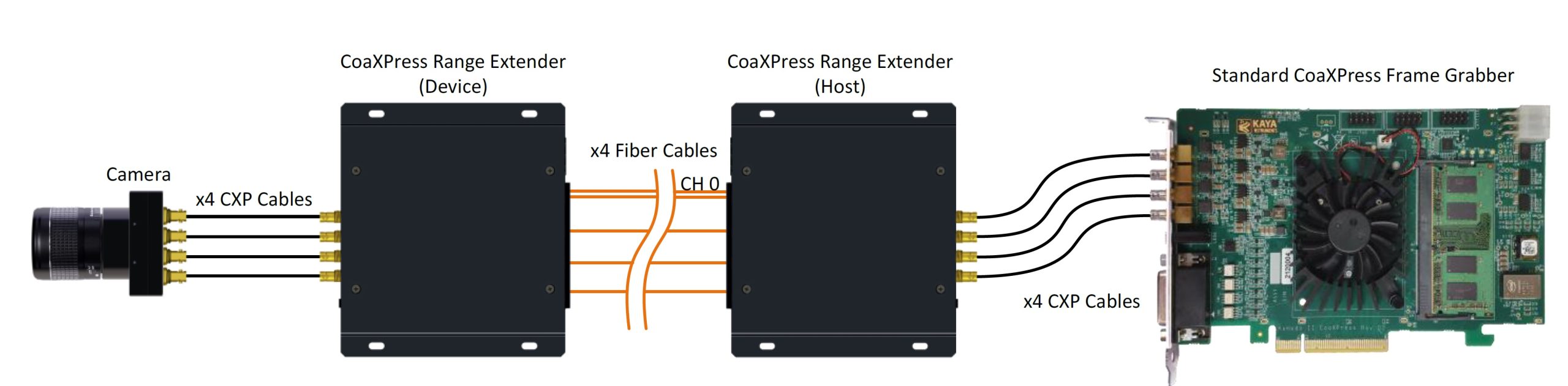

The CoaXPress v2.1 Range Extender over Fiber supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.
