Key Features:
- Single CoaXPress 12.5Gbps channel
- PCIe Gen2 x4 interface with up to 12.5Gbps throughput
- CoaXPress v2.1 compliant
- On board image processing
- PoCXP support with 13W
- Flexible GPIO interface
- Sophisticated GUI and SDK support
Predator II Single channel CoaXPress 12G Frame Grabber
650 $
Features
Ordering Code:
KY-FGP-II
Predator II is a low-cost Frame Grabber supporting the CoaXPress v2.0 standard. The Predator II is capable of receiving video streams from a single CoaXPress link at bit rates up to 12.5 Gbps, including PoCXP. This CoaXPress 12G Frame Grabber is ideally suited for industrial, defense, and aerospace machine vision systems applications.
The Predator II can easily receive a video stream on the CoaXPress v2.0 link and transmit it to computer memory through the PCIe interface. This product also provides an external GPIO bracket for machine control signals such as triggers, shaft encoders, exposure control, and general I/O, which can be controlled alongside the video stream acquisition.
The Predator II uses a standard Micro-BNC connector as a CoaXPress interface to the camera and a standard D-Sub panel mount connector for general-purpose I/O. The Frame Grabber utilizes PCIe Gen2 x4 links for communication with the host PC for video uploading and configuration.
Specifications
| Product / Feature | Predator II CoaXPress Frame Grabber with single channel |
| Form Factor | PCI Express card |
| Format | Low profile, half length, 4-lane PCI Express card |
| Cooling method | Passive, requires airflow |
| Mounting | For insertion in a low profile, 4-lane or higher, PCI Express card slot |
| Connectors | • Ports 1 through 1 via x1 Micro-BNC connectors for CoaXPress v2.1 interface • x1 I/O connector HD DB26 D-sub panel mount (26-pin 3-row) on front bracket • Auxiliary 6-pin PEG power socket 12 VDC power input (for PoCXP) on PCB |
| Lamp indicators | Port 0 on bracket 1x bi-color red/green LEDs CoaXPress Host connector indicator lamps FPGA Status indicators on PCB: – 4 Green LEDs – Active blinking indicator – PCIe link indicator – PCIe x4 link indicator – PCIe Gen2 link indicator |
| Dimensions | L 167.65 mm x H 68.9 mm L 6.6 in x H 2.71 in |
| Weight | 130gr |
| Host bus | |
| Standard | PCI Express 2.0 |
| Link width | 4 lanes 1 or 2 lanes with reduced performance |
| Link speed | 12.5 Gbps (PCIe 2.0) |
| Maximum payload size | 512 bytes |
| DMA | • 64-bit • Scatter gather support • Phisical address support (GPU transfers) |
| Peak delivery bandwidth | 2,000 MB/s |
| Effective (sustained) delivery bandwidth | 1,700 MB/s (Host PC motherboard dependent) |
| Power consumption | Typ. 7 W , excluding camera and I/O power output |
| Camera / video inputs | |
| Interface standard(s) | CoaXPress v2.0 |
| Connectors | 1x Micro-BNC |
| Status LEDs | 1 CoaXPress Host connection status per connector 4 System status LEDs |
| Number of cameras | 1 |
| Number of links per single camera | 1 |
| Syncronisation between cameras | Yes |
| Line-scan cameras supported | Yes |
| Maximum aggregated camera data transfer rate | 12.5 Gbit/s |
| Supported CXP down-connection speeds | • 1.25 GT/s (CXP-1) • 2.5 GT/s (CXP-2) • 3.125 GT/s (CXP-3) • 5 GT/s (CXP-5) • 6.25 GT/s (CXP-6) • 10 GT/s (CXP-10) • 12.5 GT/s (CXP-12) |
| Maximum stream packet size | 8,192 bytes |
| PoCXP (Power over CoaXPress) | • PoCXP Safe Power: • 13 W of 24V DC regulated power per CoaXPress connector • PoCXP Device detection and automatic power-on • Overload and short-circuit protections • On-board 12V to 24V DC/DC converter • A +12V power source must be connected to the auxilary poewer input connector |
| Camera types | Area-scan cameras: • Gray-scale and color (RGB and Bayer CFA) • Single-tap (1X-1Y) progressive-scan • Single-tap (1X-1Y) interlaced Line-scan cameras: • Gray-scale and color RGB |
| Camera pixel formats supported | Raw, Monochrome, Bayer, RGB, YUV, YCbCr and RGBA (PFNC names): • Raw • Mono8, Mono10, Mono12, Mono14, Mono16 • BayerXX8, BayerXX10, BayerXX12, BayerXX14, BayerXX16 where XX = GR, RG, GB, or BG • RGB8, RGB10, RGB12, RGB14, RGB16 • RGBA8, RGBA10, RGBA12, RGBA14, RGBA16 • YUV411 8, YUV411 10, YUV411 12, YUV411 14, YUV411 16 • YUV422 8, YUV422 10, YUV422 12, YUV422 14, YUV422 16 • YUV444 8, YUV444 10, YUV444 12, YUV444 14, YUV444 16 • YCbCr601 411 8, YCbCr601 411 10, YCbCr601 411 12, YCbCr601 411 14, YCbCr601 411 16 • YCbCr601 422 8, YCbCr601 422 10, YCbCr601 422 12, YCbCr601 422 14,YCbCr601 422 16 • YCbCr601 444 8, YCbCr601 444 10, YCbCr601 444 12, YCbCr601 444 14, YCbCr601 444 16 |
| Area-scan camera control | |
| Trigger | Precise control of asynchronous reset cameras, with exposure control. Support of camera exposure/readout overlap. Support of trigerring from encoder or timer Support of external hardware trigger, with optional delay, filtering and trigger decimation. |
| Strobe | Accurate control of the strobe position for strobe light sources. Support of early and late strobe pulses. |
| Line-scan camera control | |
| Scan/page trigger | Precise control of start-of-scan and end-of-scan triggers. Support of external hardware trigger, with optional delay and filtering. Support of trigerrring from encoder Support of infinite acquisition, without missing lines. |
| Line trigger | Support for quadrature motion encoders, with programmable filters, selection of acquisition direction and backward motion compensation. |
| Line strobe | Accurate control of the strobe position for strobed light sources. |
| On-board processing | |
| On-board memory | 512 MB DDR3 |
| Bayer De-Mosaic | Full 16bit resolution • Bilinear 3×3 • Bilinear 3×2 for linescan with gradient correction |
| Color Transformation | Full 16bit resolution 18bit coefficiens table • Color space conversion • Gain and Offset |
| Decimation | Line skip |
| Additional features | Unpacking of 10-/12-/14-bit to 16-bit with justification to LSb |
| Frame Timestamp | 64bit with 8ns precision |
| Data stream statistics | Measurement of: • Frame/Line rate • CRC Errors • Dropped frames • Received packets • Test packets |
| Event signaling and counting | The application software can be notified of the occurrence of various events: •Newly aquired buffers •Camera and Illumination control events •I/O events •Timer events •Encoder events |
| General Purpose Inputs and Outputs | |
| Number of lines | 20 I/O lines: 2 differential inputs 2 differential outputs 4 singled-ended TTL inputs/outputs 4 singled-ended LVCMOS inputs/outputs 4 opto-isolated inputs 4 opto-isolated outputs |
| Usage | Any System I/O input lines can be connected to any I/O line Any I/O line can be used to decode A/B and Z signals of a motion encoder Any I/O line can generate any trigger event Any I/O line can trigger a timer |
| Electrical specifications | Differential lines – LVDS compatible TTL lines – 6V TTL compliant LVCMOS lines – 6.5V LVCMOS compliant Isolated lines – opto isolated lines with voltage range up to 30V |
| Filter control | Glitch removal filter available on all System I/O input lines Configurable filter time constants: for DIN and TTLIO lines: 50 ns, 100 ns, 200 ns, 500 ns,1 µs for IIN lines: 500 ns, 1 µs, 2 µs, 5 µs, 10 µs |
| Polarity control | Yes |
| Encoders | 4 quadrature encoders with A/B and Z inputs 32bit position counter Forward and backeward counting Position trigger support Noise filtering |
| Timers | 4 general purpose timers Configurable delay and duration 32bit accomulator |
| Event reporting | 64bit system timestamp event reporting Each I/O line can generate event on configurable edge Each Timer can generate event Each encoder can generate event |
| Frame grabber syncronisation | |
| Syncronisation | Precise area and linscan cameras syncronisation across different frame grabbers |
| Software | |
| Host PC Operating System | Microsoft Windows 10 64-bit versions Open source Linux kernel driver Tested and precompiled for Ubuntu 18.04, Ubuntu 20.04 Nvidia Xavier AGX |
| Buffer management | Circular buffer support Accumulation of several frames/lines to single buffer to reduce CPU load CPU load DMA Buffer filling directly to system memory |
| APIs | GenICam GenTL producer libraries C, Python and .NET bindings Compilers: xx86_64 dynamic library designed to be used with ISO-compliant C runtime Allows for development of x86_64 applications Plug-in modules for Matlab, HALCON, Cognex and Labview |
| GUI | Supported for Windows and Linux OS Multi camera display and configuration Flexible buffer queuing Image/video recording and playback |
| Debugging capabilities | Event logging Statistics counters |
| GenCam | Supports GenICam 3.2 Full camera and Frame Grabber parameters configuration |
| Environmental conditions | |
| Operating ambient air temperature | 0 to +50 °C / +32 to +122 °F |
| Operating ambient air humidity | 10 to 90% RH non-condensing |
| Storage ambient air temperature | -20 to +70 °C / -4 to +158 °F |
| Storage ambient air humidity | 10 to 90% RH non-condensing |
| Certifications | |
| Electromagnetic – EMC standards | The European Council EMC Directive 2004/108/EC The Unites States FCC rule 47 CFR 15 |
| EMC – Emission | EN 55022:2010 Class B FCC 47 Part 15 Class B |
| EMC – Immunity | EN 55024:2010 Class B EN 61000-4-3 EN 61000-4-4 EN 61000-4-6 |
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | Compliant with the European Union Directive 2011/65/EU (ROHS2) |
| REACH | Compliant with the European Union Regulation No 1907/2006 |
| WEEE | Must be disposed of separately from normal household |
| Ordering Information | KY-FGPII |
| Optional accessories | GPIO Expansion bracket Low profile bracket |

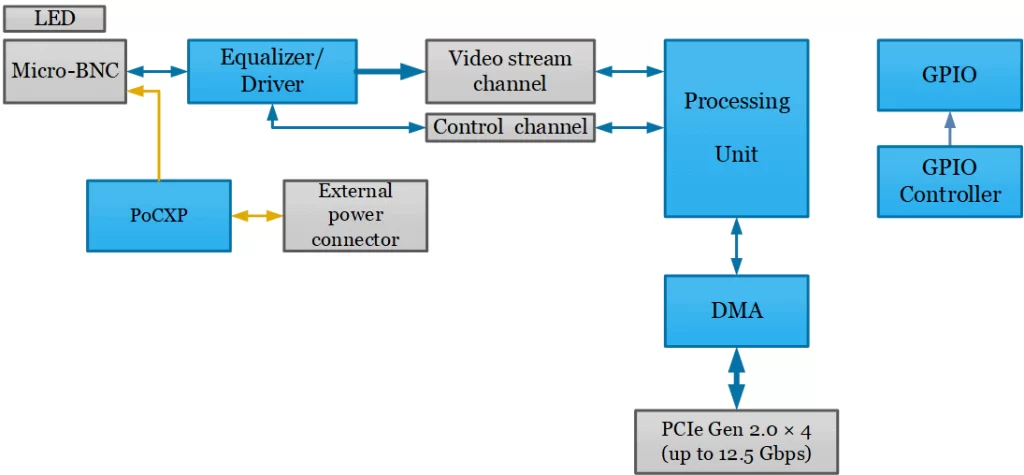

Block diagram
Example System Block Diagram
The Predator II Frame Grabber supports the following mode of configuration and system topology.
Single Camera Topology:
Single CoaXPress link with up to 12.5 Gb per link topology.
Maximum throughput to PCIe of 12.5 Gb/sec.
