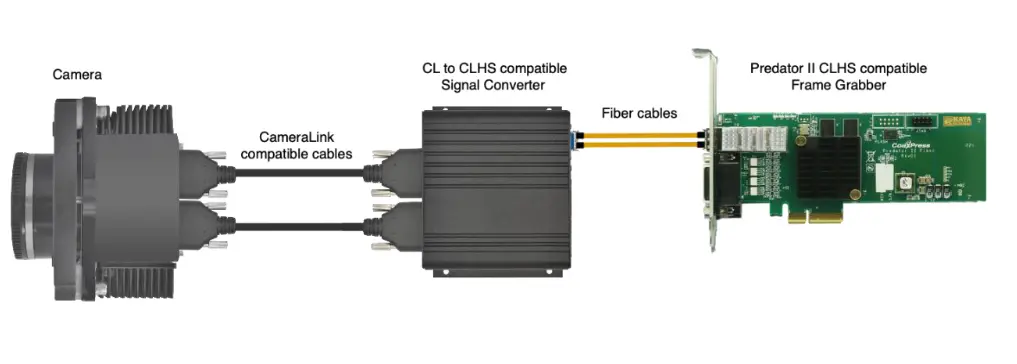

Single camera topology
Camera Link to CLHS compatible Signal Converter
CL to CLHS compatible Signal Converter
Features
Innovative Approach
KAYA Instruments’ CL to CLHS compatible Signal Converter allows convert Camera Link interface by connecting camera to frame grabber over single fiber cable. This solution provides a high resolution stream interface for distances up to 80 km. The Signal Converter is capable of supplying power (PoCL) to camera over data cable.
Intelligent Design
The system uses flexible SFP+ modules for optical connection that can be easily changed. The Signal converter is able to provide a bidirectional communication at up to 10.3125 Gbps equal to Camera Link Full/80 bit (Deca) over single fiber cable with standard fiber frame grabbers.
Key Features
- Camera Link Base, Medium, Full, or 80-bit (Deca) support
- Bidirectional communication over a single fiber cable
- Flexible machine I/O:
- RS232
- RS422
- Opto-isolated
- TTL GPIOs
- Standard MDR26 connectors
- Single fiber optic cable
- Extension using Multi-Mode fiber up to 300 m
- Extension using Single-Mode fiber up to 80 km
- Power over Data support
- Flexible SFP+ module for optic fiber connection
- Easy configuration
- External power supply (optional)
- -40 °C to +70 °C operating temperature
Applications
- High-speed cameras
- High-definition cameras
- Panoramic cameras
- Defense remote systems
- Surveillance
- Robotic Vision
Specifications
| General | |
|---|---|
| Interface standard(s) | Camera Link compatible v2.0 |
| Connectors | 2x Camera Link v2.0 connectors 1x SFP+ connector for Camera Link over Fiber 2x RJ45 GPIO connectors 1x mini-USB system status port 1x Power 12 V DC input connector |
| Status LEDs | 2x Camera Link connection status per connector 1x Fiber connection status per connector 1 System status LED |
| Number of links | 1 |
| Line-scan cameras supported | Yes |
| Supported connection speeds | 10.3125 Gbit/s |
| Cooling method | Air cooling, passive heatsink |
| Dimensions | 133 mm x 100 mm x 44 mm (5.2” x 3.9” x 1.7”) |
| Weight | 346 g (12 oz) |
| Power Input | 12 V DC |
| Power Consumption | 10.8 W (Self consumption not including cameras) |
| Environmental conditions | |
| Operating ambient air temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Operating ambient air humidity | 10% to 90% RH non-condensing |
| Storage ambient air temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Storage ambient air humidity | 10% to 90% RH non-condensing |
| Certifications | |
| Electromagnetic – EMC standards | The European Council EMC Directive 2004/108/EC The United States FCC rule 47 CFR 15 |
| EMC – emission | EN 55022:2010 Class B FCC 47 Part 15 Class B |
| EMC – immunity | EN 55024:2010 Class B EN 61000-4-3 EN 61000-4-4 EN 61000-4-6 |
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | Compliant with the European Union Directive 2011/65/EU (ROHS2) |
| REACH | Compliant with the European Union Regulation No 1907/2006 |
| WEEE | Must be disposed of separately from normal household waste and must be recycled according to local regulations |
| Ordering Information | |
| Camera Link to CLHS compatible Signal Converter | KY-CL2F-D |
| SFP+ single-mode module, 10 km | KY-SFP-10GLR-31 |
| SFP+ multi-mode module, 300 m | KY-SFP-10GSR-85 |
| SFP+ bidirectional module | KY-SFP-BD-10G-10 |
| Single Mode Patch cable Duplex with LC termination | KY-FCA-D-SM-LC-200.0 |
| Multi Mode Patch cable Duplex with LC termination | KY-FCA-D-MM-LC-35.0 |
| Power supply 12V, 60W | KY_PWR12_60 |
System Stracture

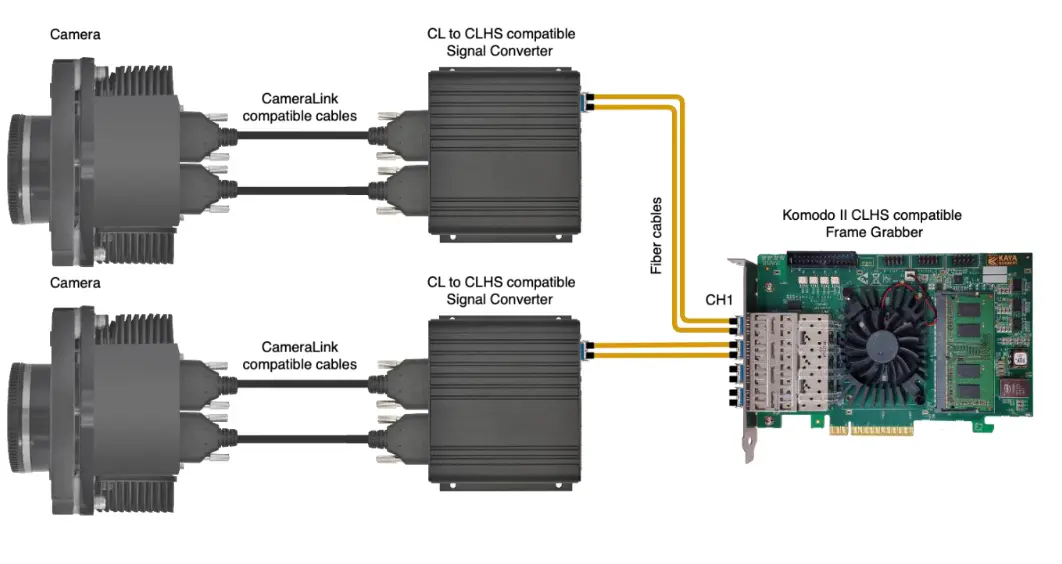

Dual camera topology

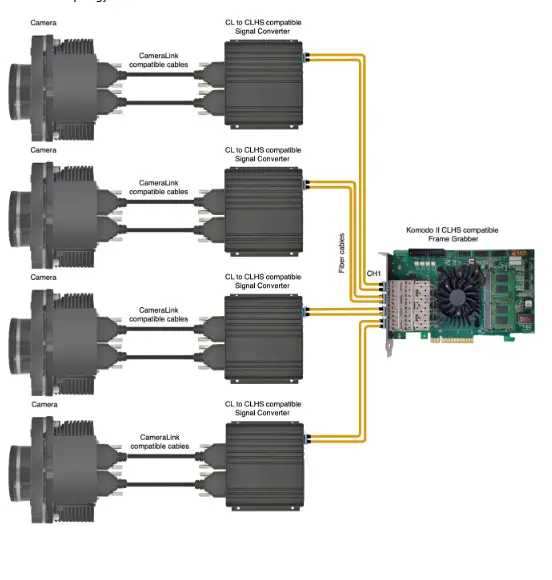

Quad camera topology
