CoaXPress to CoaXPress over Fiber Signal Converter

CoaXPress (CXP) to CoaXPress over Fiber (CoF) Signal Converter

Features

Innovative Approach
KAYA Instruments’ CoaXPress to CoaXPress over Fiber Signal Converter is the industry’s first CoaXPress v2.1 signal converter, offering a high-resolution stream interface that converts CoaXPress signals for transmission over fiber. It supports distances up to 80 km in single-mode and up to 300 m in multi-mode. Fiber optic is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic interference, also eliminates the problems associated with grounding. The fiber cable is not easily tapped, providing more secure communication. The signal converter utilizes a standard CoaXPress over Fiber protocol, ensuring compatibility with standard fiber frame grabbers.

Intelligent Design
The CoaXPress (CXP) to CoaXPress over Fiber (CoF) Signal Converter utilizes standard Micro-BNCs converting CXP to CoaXPress over Fiber utilizing standard SFP+ that can support distances up to 80km. The CXP to CoF Signal Converter can provide the camera power using the CoaXPress link with an external power supply. The Signal Converter is able to provide an uplink of up to 12.5 Gbps and downlink up to 41.6 Mbps. A Micro USB port is available for individual link and general information status and firmware updates

Features

  • CoaXPress v2.1 support
  • CoaXPress over fiber (CXPoF) support
  • Support up to 12 G of operation
  • Power over CoaXPress with 13 W per link
  • Fanless design
  • Solves distance limitation of CoaXPress
  • Downlink/Uplink of 12.5 Gbps and 41.6 Mbps respectively
  • Data rates up to 12.5 Gbps per link
  • Extension using Multi-Mode fiber up to 300 m
  • Extension using Single-Mode fiber up to 80 km
  • CWDM support
  • Small mechanical footprint
  • Improved power connector
  • Rugged design
  • Bidirectional CoaXPress communication
  • Flexible SFP+ module for fiber optic connection
  • Micro-BNC connector for CoaXPress links
  • Plug and Play, no configuration required
  • Industrial -40 °C to +80 °C operation temperature

Applications

  • High speed cameras
  • High definition cameras
  • Panoramic cameras
  • Defense remote systems
  • Surveillance
  • Sports judgement and analytics

Specifications

General
Interface standard(s) CoaXPress v2.1 (CoaXPress 1.1 backward compatible)
CoaXPress over Fiber 1.0
Connectors 4x Micro-BNC CoaXPress v2.1 connector
4x SFP+ for CoaXPress over Fiber
1x Micro USB system status port
1x Power 24 V DC input connector
Status LEDs 4x CoaXPress connection status per connector
4x Fiber connection status per connector
1 System status LED
Number of links 4
Line-scan cameras supported Yes
Supported CXP down-connection speeds 1.25 Gbit/s (CXP-1)
2.5 Gbit/s (CXP-2)
3.125 Gbit/s (CXP-3)
5 Gbit/s (CXP-5)
6.25 Gbit/s (CXP-6)
10 Gbit/s (CXP-10)
12.5 Gbit/s (CXP-12)
Cooling method Air cooling, passive heatsink
Dimensions 117 mm x 114.5 mm x 23.5 mm (4.6” x 4.5” x 0.92”)
Weight 300 g (10.58 oz)
Power Input 24 V DC
Power Consumption < 11 W (Self consumption not including cameras)
Environmental conditions
Operating ambient air temperature -40 °C to +80 °C (-40 °F to +176 °F)
Operating ambient air humidity 10% to 90% RH non-condensing
Storage ambient air temperature -40 °C to +80 °C (-40 °F to +176 °F)
Storage ambient air humidity 10% to 90% RH non-condensing
Certifications
Electromagnetic – EMC standards The European Council EMC Directive 2004/108/EC
The United States FCC rule 47 CFR 15
EMC – emission EN 55022:2010 Class B
FCC 47 Part 15 Class B
EMC – immunity EN 55024:2010 Class B
EN 61000-4-3
EN 61000-4-4
EN 61000-4-6
Flammability PCB compliant with UL 94 V-0
RoHS Compliant with the European Union Directive 2011/65/EU (ROHS2)
REACH Compliant with the European Union Regulation No 1907/2006
WEEE Must be disposed of separately from normal household waste and must be recycled according to local regulations
Ordering Information
CoaXPress to CoaXPress over Fiber Signal Converter KY-FEXT-II-D
SFP+ single-mode module, 10 km KY-SFP-10GLR-31
SFP+ multi-mode module, 300 m KY-SFP-10GSR-85
CWDM SFP+ module KY-CWDM-10G-xSP
Fiber cable KY-FCA-X-XX
CoaXPress Cable KY-CCA-X-XX
Power supply 24V, 90W KY_PWR24_90

System Stracture

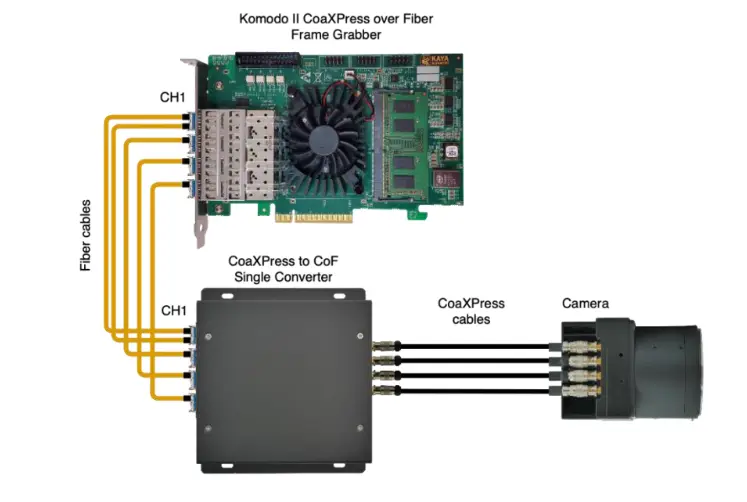

Single camera topology

CoaXPress to CoaXPress over Fiber Signal Converter

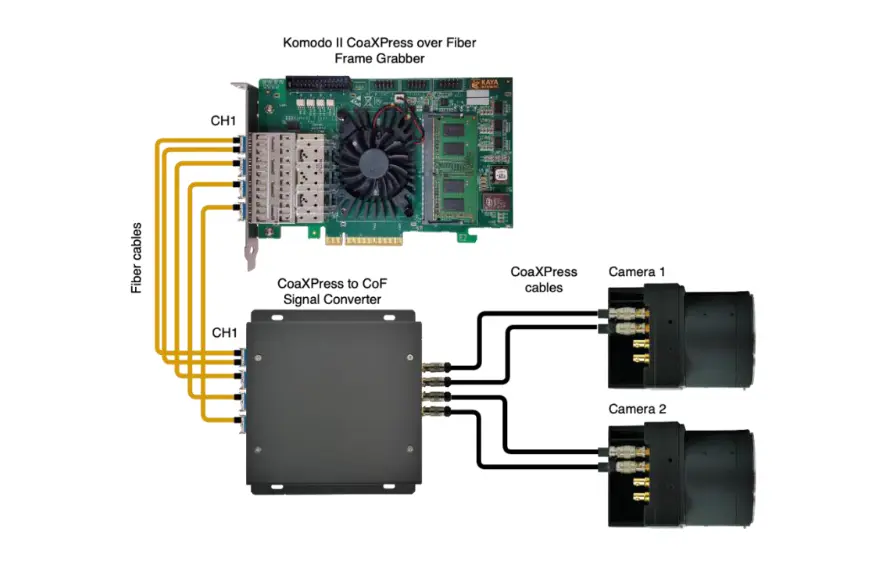

Dual camera topology

CoaXPress to CoaXPress over Fiber Signal Converter
