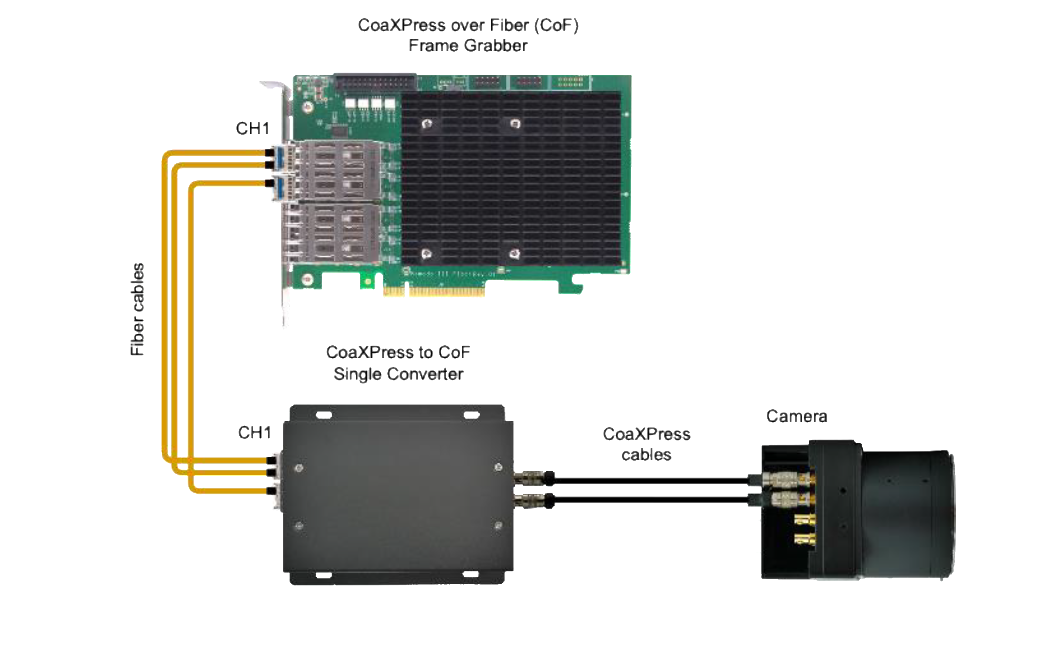

Single camera topology

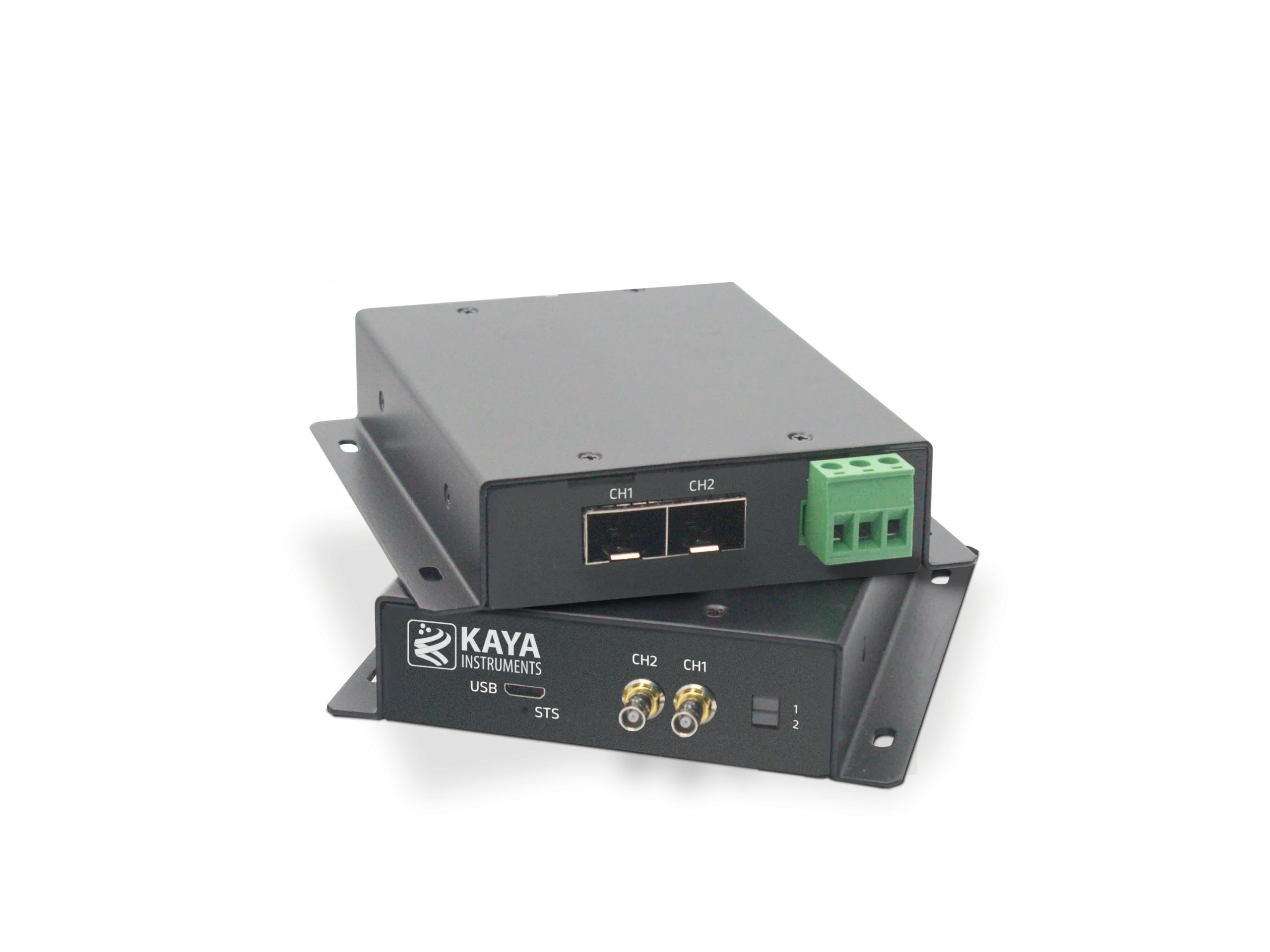

CoaXPress to CoF Dual Signal Converter
CoaXPress to CoaXPress over Fiber Dual Signal Converter
Features
Innovative Approach
KAYA Instruments’ CoaXPress to CoaXPress over Fiber Signal Converter is the industry’s first CoaXPress v2.1 signal converter, offering a high-resolution stream interface that converts CoaXPress signals for transmission over fiber. It supports distances up to 80 km in single-mode and up to 300 m in multi-mode. Fiber optic is electrically isolated, hence it does not radiate nor is it susceptible to electromagnetic interference, also eliminates the problems associated with grounding. The fiber cable is not easily tapped, providing more secure communication. The signal converter utilizes a standard CoaXPress over Fiber protocol, ensuring compatibility with standard fiber frame grabbers,
Intelligent Design
The CoaXPress (CXP) to CoaXPress over Fiber (CoF) Signal Converter utilizes standard Micro-BNCs converting CXP to CoaXPress over Fiber utilizing standard SFP+ that can support distances up to 80 km. The CXP to CoF Signal Converter can provide the camera power using the CoaXPress link with an external power supply. The Signal Converter is able to provide an uplink of up to 25 Gbps and downlink up to 41.6 Mbps. A Micro USB port is available for individual link and general information status and firmware updates.
Key Features
- CoaXPress v2.1 support
- CoaXPress over fiber (CXPoF) support
- Support up to 12G of operation
- Power over CoaXPress with 13 W per link
- Fanless design
- Solves distance limitation of CoaXPress
- Downlink/Uplink of 25 Gbps and 41.6 Mbps respectively
- Data rates up to 12.5 Gbps per link
- Extension using Multi-Mode fiber up to 300 m
- Extension using Single-Mode fiber up to 80 km
- CWDM support
- Small mechanical footprint
- Improved power connector
- Rugged design
- Bidirectional CoaXPress communication
- Flexible SFP+ module for fiber optic connection
- Micro-BNC connector for CoaXPress links
- Plug and Play, no configuration required
- Industrial -40 °C to +80 °C operation temperature
Applications
- High speed cameras
- High definition cameras
- Panoramic cameras
- Aerospace remote systems
- Surveillance
- Sports judgement and analytics
Specifications
| General | |
|---|---|
| Interface standards | CoaXPress v2.1 (CoaXPress 1.1 backward compatible), CoaXPress over Fiber 1.0 |
| Connectors | |
| CoaXPress connectors | 2x Micro-BNC CoaXPress v2.1 |
| Fiber connectors | 2x SFP+ for CoaXPress over Fiber |
| Status port | 1x Micro USB system status port |
| Power connector | 1x 28 V DC input connector |
| Status LEDs | |
| CoaXPress status LEDs | 2x per connector |
| Fiber status LEDs | 2x per connector |
| System status LED | 1 |
| Links & Cameras | |
| Number of links | 2 |
| Line-scan cameras supported | Yes |
| Supported CXP Down-Connection Speeds | |
| CXP-1 | 1.25 Gbit/s |
| CXP-2 | 2.5 Gbit/s |
| CXP-3 | 3.125 Gbit/s |
| CXP-5 | 5 Gbit/s |
| CXP-6 | 6.25 Gbit/s |
| CXP-10 | 10 Gbit/s |
| CXP-12 | 12.5 Gbit/s |
| Mechanical | |
| Cooling method | Air cooling, passive heatsink |
| Dimensions | 117 mm x 114.5 mm x 23.5 mm (4.6” x 4.5” x 0.92”) |
| Weight | 300 g (10.58 oz) |
| Power | |
| Power input | 28 V DC |
| Power consumption | < 7 W (self consumption, not including cameras) |
| Environmental Conditions | |
| Operating temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Operating humidity | 10% to 90% RH, non-condensing |
| Storage temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Storage humidity | 10% to 90% RH, non-condensing |
| Certifications | |
| EMC directives | European EMC Directive 2014/30/EU, FCC 47 CFR 15 |
| EMC emission | EN 55032:2015 Class B, FCC 47 Part 15 Class B |
| EMC immunity | EN 55035:2017 Class B, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6 |
| Flammability | PCB compliant with UL 94 V-0 |
| RoHS | Compliant with EU Directive 2011/65/EU (RoHS2) |
| REACH | Compliant with EU Regulation No 1907/2006 |
| WEEE | Must be recycled separately according to local regulations |
| Ordering Information | |
| Signal converter | KY-FEXT-II-D-2CH |
| SFP+ single-mode module (10 km) | KY-SFP-10GLR-31 |
| SFP+ multi-mode module (300 m) | KY-SFP-10GSR-85 |
| CWDM SFP+ module | KY-CWDM-10G-xSP |
| Fiber cable | KY-FCA-X-XX |
| CoaXPress cable | KY-CCA-X-XX |
| Power supply | 24 V, 90 W (KY-PWR-007) |
System Stracture

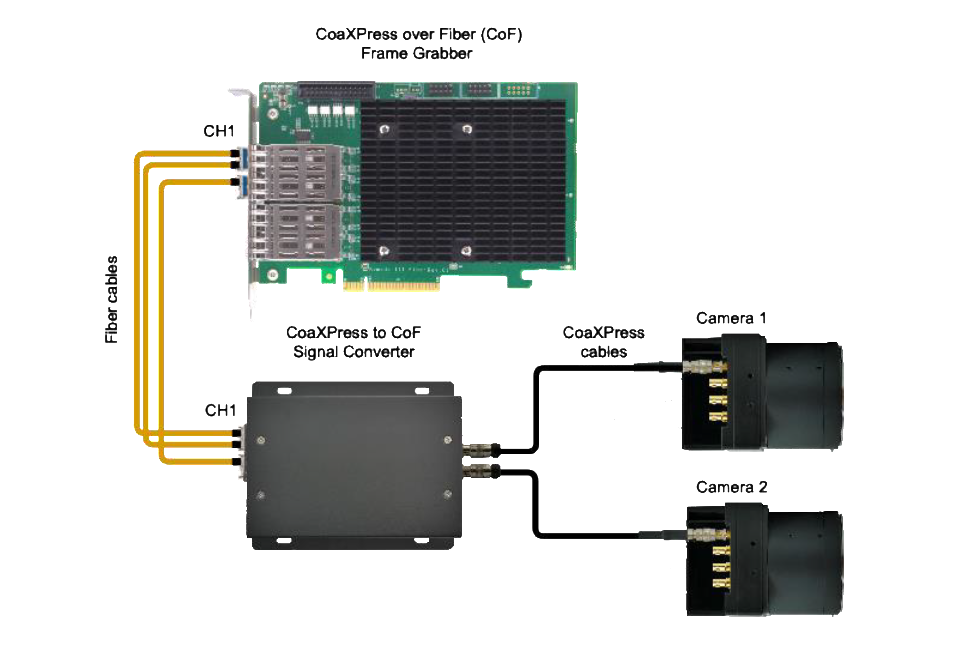

Dual camera topology

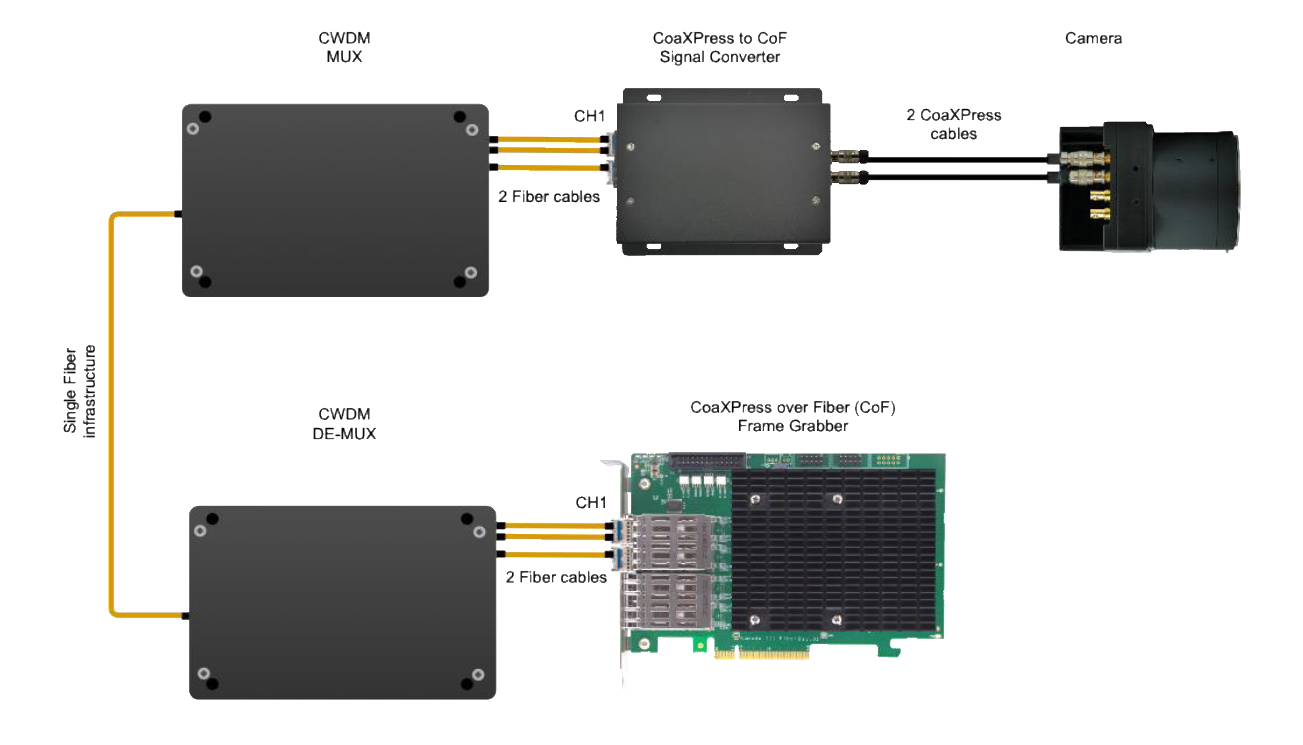

CWDM
NOTE: Channel 1 (CH1) must have a duplex fiber connection (Or BIDI SFP with single fiber cable) while other channels can have a simplex fiber connection from device side to host.
