Komodo II FXP – CoF acquisition system

$ 2500

Features

Key Features:

  • Up to 4 CoaXPress 12.5 Gbps channels
  • Up to 80km maximum distance
  • PCIe Gen3 x8 interface
  • 4GB DDR4 SODIMM
  • PoCXP support on all channels
  • Onboard image processing (DeBayer, Color correction, and many more)
  • Flexible GPIO interface
  • Sophisticated GUI and SDK support
  • Plug and Play
  • Extended temperature range (optional)
  • JIIA certified product

Ordering Codes:

KY-FXP

Komodo II FXP system is the industry’s first CoaXPress image acquisition system without range limitations. The system uses fiber optic cables to provide a high-resolution image acquisition interface for distances up to 80km in single mode and up to 300m in multi-mode. The Komodo II FXP system can receive video streams from up to 4 CoaXPress links in single, dual, or quad modes. It is used for simultaneous capture from up to four cameras. Each link supports standard CoaXPress bitrates up to 15.9375 Gbps. This system is ideally suited for industrial, defense, and aerospace Machine Vision Systems and applications. The system consists of Komodo II over Fiber frame grabber and CoaXPress to Fiber device. The remote unit converts CoaXPress links to a fiber optic interface. The Komodo II over Fiber FXP system uses a high-performance flow through DMA to transmit video streams to computer memory through a PCIe interface with minimal latency. This product also provides GPIO for machine control signals, such as triggers, shaft encoders, exposure control, and general I/O, which can be controlled aside from video stream acquisition.
The Frame Grabber utilizes PCIe Gen3 x8 links for communication with Host PC for video uploading and configuration.

Specifications

  • Solves distance limitation of CoaXPress
  • Extention for distances up to 80km in single-mode and up to 300m in multi-mode
  • Plug and Play , no need to configure
  • 1 to 4 CoaXPress links support
  • PCIe Gen3 x8 Half-length card
  • Up to 144 Gb image buffer
  • Multi-stream support
  • Camera controls and triggers
  • Per-link LED indication on card bracket
  • Flexible machine I/O:
    • 4 TTL configurable I/Os
    • 4 LVCMOS configurable I/Os
    • 2 LVDS inputs
    • 2 LVDS outputs
    • 4 opto-isolated outputs
    • 4 opto-isolated inputs
    • 8 quadrature rotary encoders
    • Integrated strobe controller
  • CoaXPress-over-Fiber (CoF) v2.1 compliant
  • Power over CoaXPress with 13W per link
  • Multiple Camera synchronization
  • Multiple Frame Grabbers synchronization
  • SFP+ connectors for CoaXPress-over-Fiber (CoF)
    links
  • GUI interface
  • Supporting Windows, Linux OS and Nvidia Jetpack
  • API for developing custom applications
  • Plug-ins modules for Matlab, HALCON and Labview
  • GenICam compliant
  • GenTL support
  • Data rates up to 15.9375 Gbps per link
  • Transfer Rate of up to 63.8 Gbit/s
  • Operating ambient air temperature -40 °C to +70 °C (+32 °F to +158 °F)

On board processing

  • RGB and Bayer with selectable bit depth
  • Custom processing engines

Deliverables

  • Komodo Fiber Frame Grabber

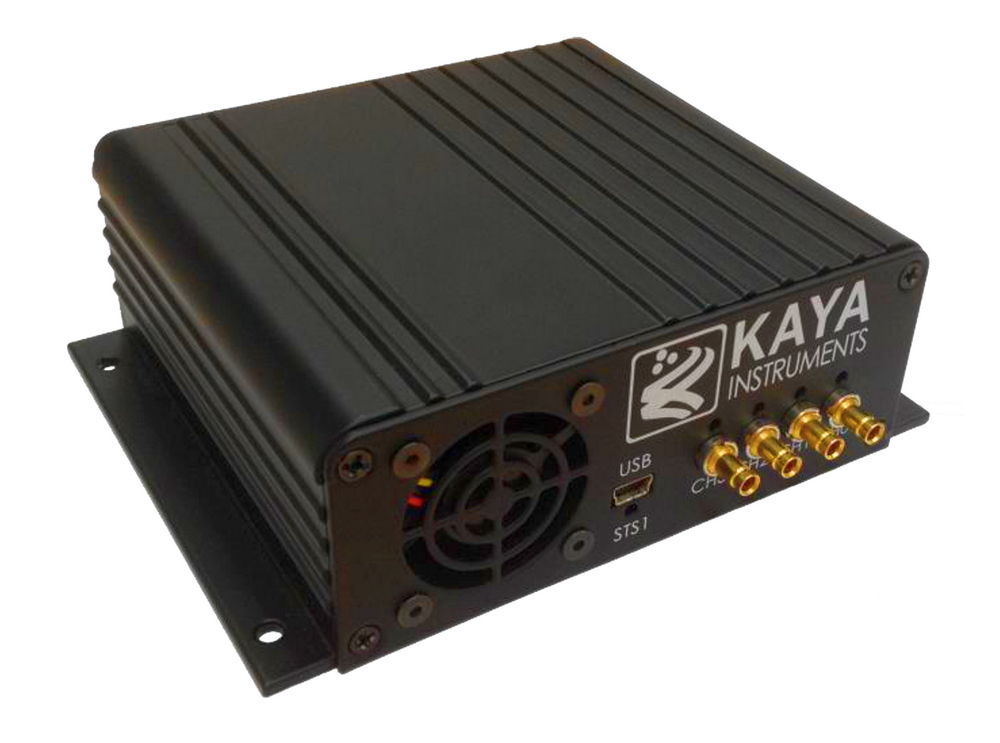

  • CoaXPress to Fiber Adapter
  • SFP+/QSFP+ modules (optional)
  • Power supply (optional)
  • Hardware user manual
  • Software installation and documentation (Disk-on-Key)
  • CoaXPress cables (optional)
  • Fiber Cables (optional)
  • GPIO Extension Panel (optional)

Block diagram

Example System Block Diagram

The CoaXPress v2.1 Range Extender over Fiber supports multiple modes of configuration and system topology. Few of these are presented in following diagrams.




Extender Directly to Frame Grabber:

Extender to Extender:

CWDM:
